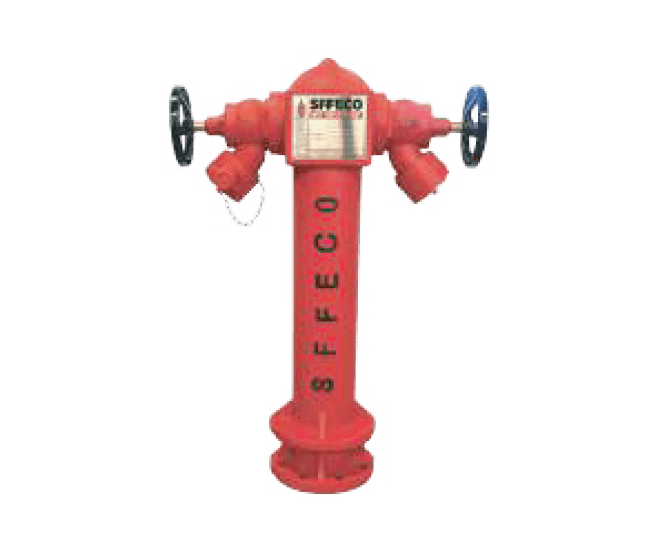

Standard Wet Barrel
MODELS SFH-50W/100-4” SFH-50W/100-6”

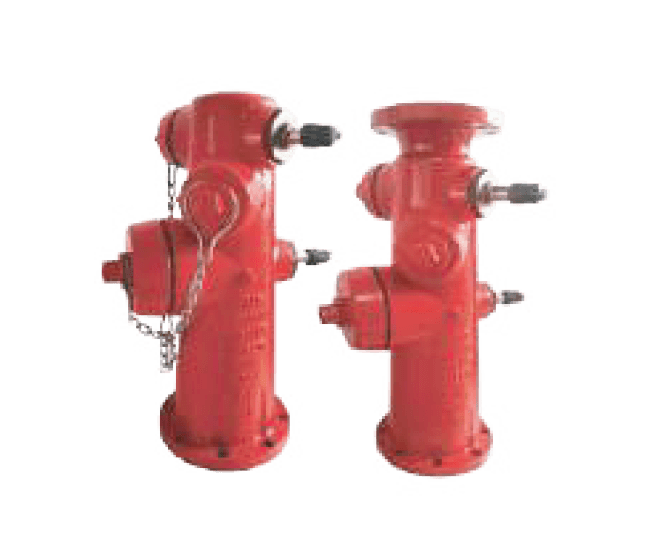

Certified Wet Barrel
MODELS MODELS SFD-250-WH-6” Closed Head SFD-250-WH-6” Flanged Head

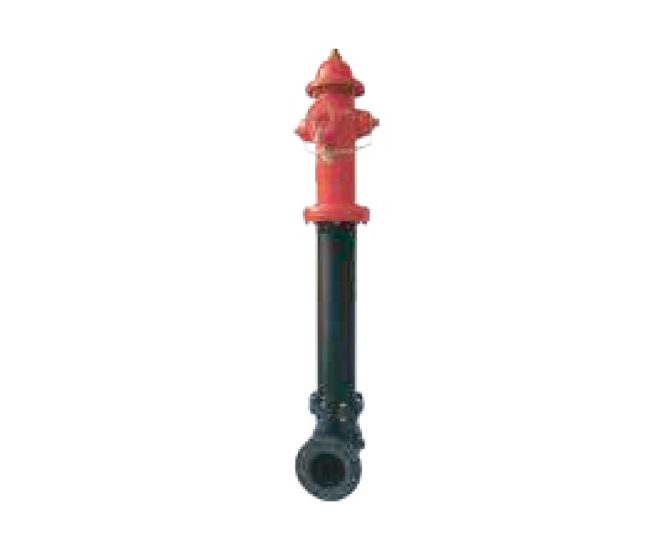

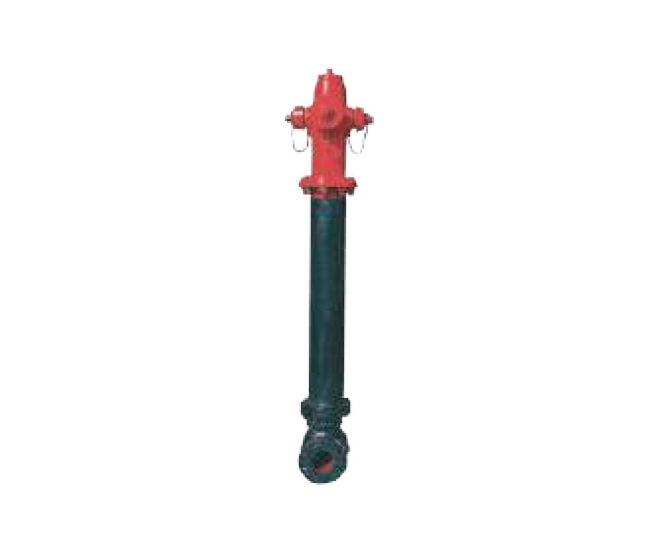

Dry Barrel
MODEL No. BURRIED DEPTH (mm) LENGTH (FEET) * SF-F-06 915 mm 3’ – 0” * SF-F-06, SF-F-06A, SF-F-06AF, SF-F-06B, SF-F-06BF 1068 mm 3’ – 6” * SF-F-06, SF-F-06A, SF-F-06AF, SF-F-06B, SF-F-06BF 1215 mm 4’ – 0” ** SF-F-06, SF-F-06A, SF-F-06AF, SF-F-06B, SF-F-06BF 1368 mm 3’ – 6” ** SF-F-06, SF-F-06A, SF-F-06AF, SF-F-06B, SF-F-06BF 1520 mm […]
Dry Barrel (Lower Depth Hydrant)
DESCRIPTION HIGHER DEPTH HYDRANT DETAILS MODEL SFH100-LPHD SFH150-LPHD SIZE DN100 FLANGE (4”) DN150 FLANGE (6”) BURIED DEPTH (MM) 563/713/943 (For Straight Inlet) 420/575/800 (For 90 Deg Inlet) 563/713/943 (For Straight Inlet) 420/575/800 (For 90 Deg Inlet) UPPER BODY OUTLET ELEVATION (mm) 423 423 Upper body flange clearance to ground level (mm) 58 58 UPPER BODY […]
Dry Barrel (Higher Depth Hydrant)
DESCRIPTION HIGHER DEPTH HYDRANT DETAILS MODEL SFH100-LPHD SFH150-LPHD SIZE DN100 FLANGE (4”) DN150 FLANGE (6”) BURIED DEPTH (MM) 800/1200/ 1445 600/800/1200/1500/1700 UPPER BODY OUTLET ELEVATION 344 402 Upper body flange clearance to ground level (mm) (C) 77 77

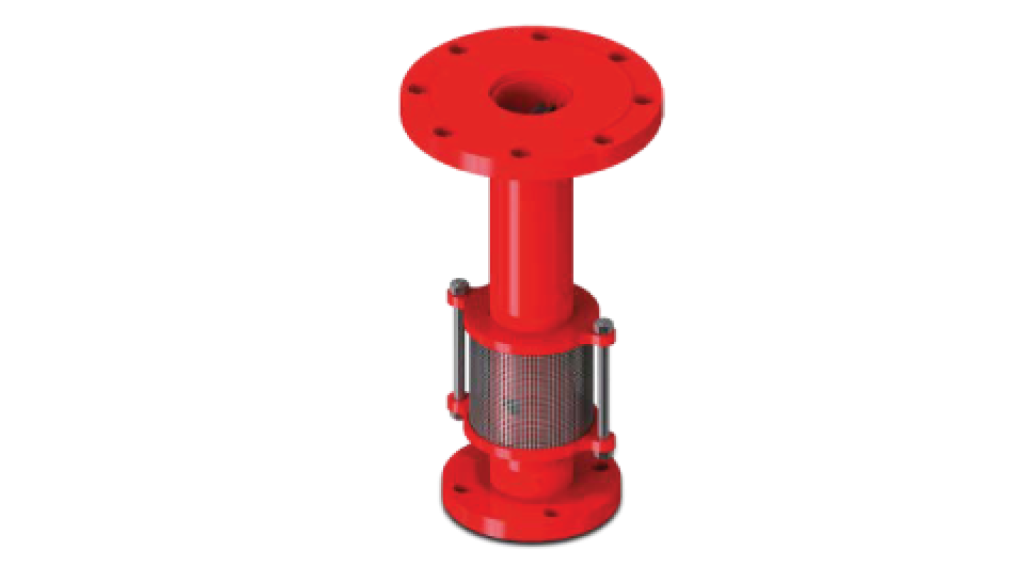

Foam Maker
SFFECO Foam Maker is an UL Listed air-aspirating foam discharge device designed to produce low expansion foam employed for fire extinguishment and / or vapour suppression in open top floating roof flammable liquid storage tanks. It is a fixed discharge outlet classified as Type II in accordance with NFPA-11 used in above surface application systems […]

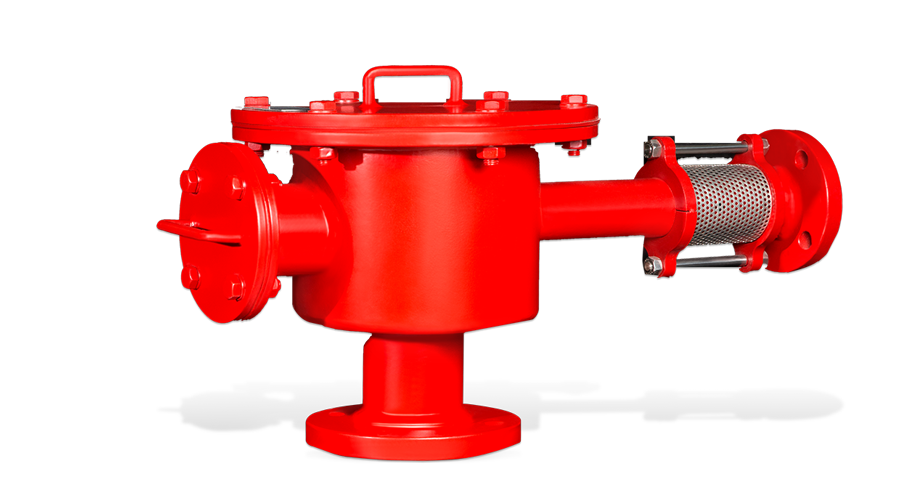

Foam Chamber
SFFECO Foam Chamber is an UL Listed air aspirating foam discharge device designed to produce low expansion foam employed for fire extinguishments and / or vapour suppression in fixed (cone) roof flammable liquid storage tanks with or without internal floating roof. It is fixed discharge device classified as Type II in accordance with NFPA-11 used […]

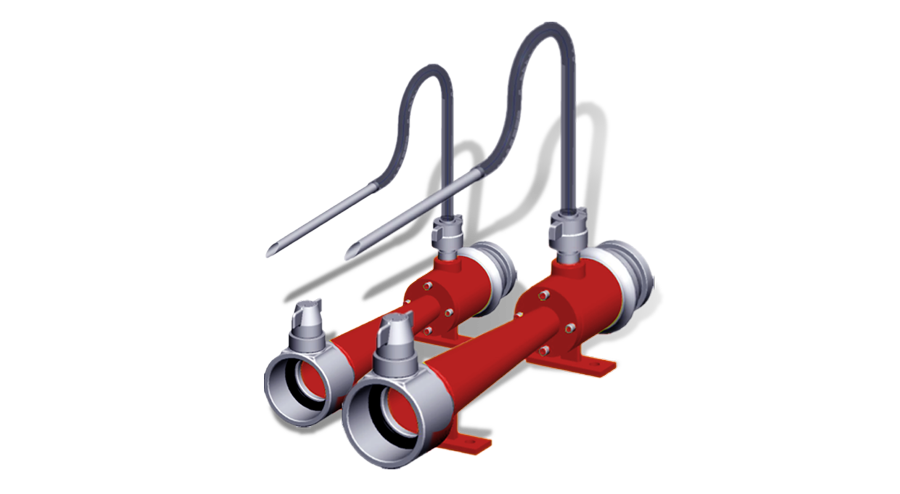

In Line Inductors
Proportioners are intended to provide continuous introduction of foam liquid concentrates, in adequate ratio, into a water stream flowing under pressure in pipe or hose lines. Foam concentrate is inducted through single or multiple inductors located in the water line to the foam maker. Inductors shall be for portable or fixed installation. They may have […]

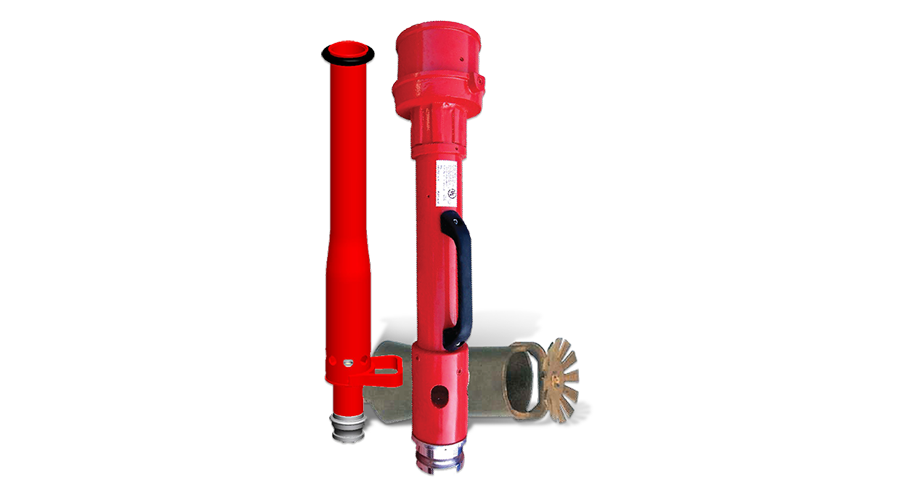

Foam Hose Stream Nozzles (Foam Branch Pipe)
SFFECO low expansion Foam hose stream nozzles (foam branches) are air aspiring type portable devices. They are handheld equipment, used to project mechanical foam from a distance onto fires which involve flammable liquids. Self-Inducting Foam branches are provided with pick-up tubes to allow induction of foam concentrate into the branch and mixing with the water […]

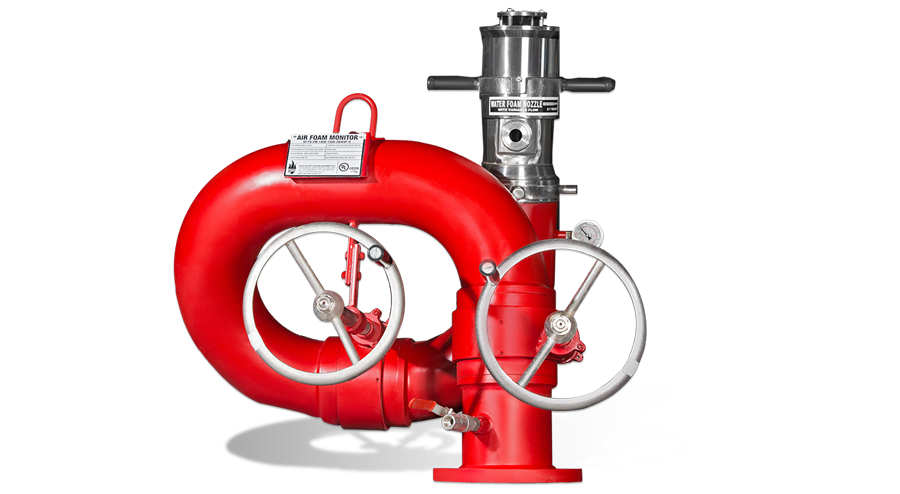

Foam Monitor
SFFECO UL Listed foam monitors are certified as per UL162 with fixed/variable flow. Monitors are intended to produce and discharge low-expension foam. Foam Monitors are used for protection of flammable liquid hazards and produce superior, long reaching foams streams.
